Key Features
- 2U chassis support for SMC Proprietary WIO motherboards; max. motherboard size - 12" x 13", 13" x 13.68". Support up to 12"x13" MB with rear 2.5" HDD option installed.
- 12 x 3.5" hot-swap SAS/SATA drive bay with SES2 and Mini-i-Pass (SFF 8087) connectivity
- 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus
- WIO Slots (4x Full-height, Half-length + 3x Low-profile)
- 3 x 8cm high-performance PWM fan(s)
- Optional 5 x 6cm fan cooling module for 826B/216B
|
| |
|
|
 |
|
 |
|
|
|
 |
| CSE-826BE26-R1K28WB |

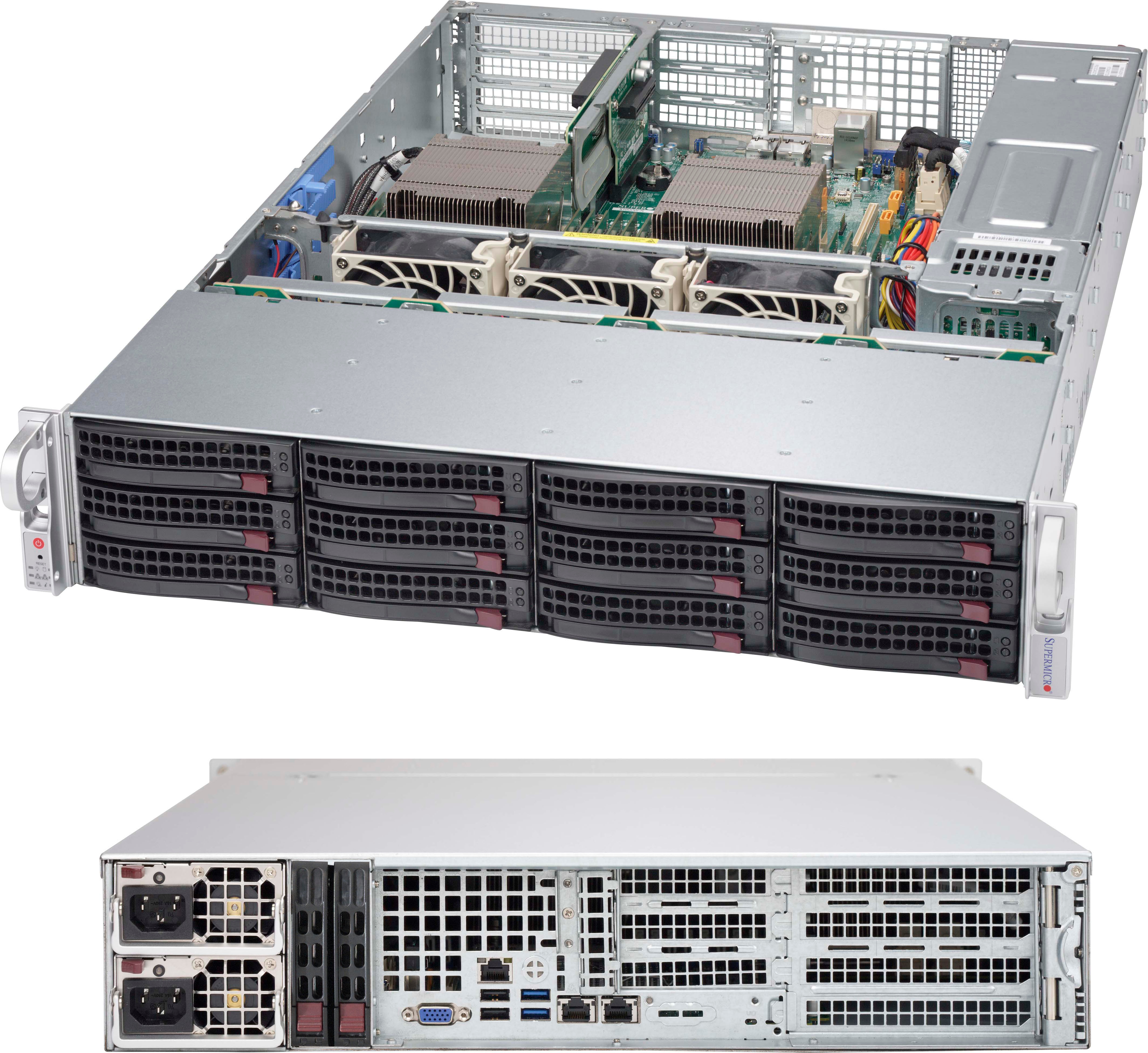

- SuperChassis 826BE26-R1K28WB
|
| |
|
- 2U chassis support for SMC Proprietary WIO motherboards; max. motherboard size - 12" x 13", 13" x 13.68".
- Support up to 12"x13" MB with rear 2.5" HDD option installed.
|
| |
|
- Dual and Single Intel® and AMD processors
|
| |
|
| Height |
|
| Width |
|
| Depth |
|
| Gross Weight |
|
| Packaging (W x H x L) |
- 26.7" (678 mm) x 11.4" (290 mm) x 34.5" (876 mm)
|
| Palletized Packing (W x H x L) |
- 37.3" (947 mm) x 27" (686 mm) x 14.8" (376 mm)
|
| Available Color |
|
| |
|
- WIO Slots (4x Full-height, Half-length + 3x Low-profile)
|
| |
|
- 12 x 3.5" hot-swap SAS/SATA drive bay with SES2 and Mini-i-Pass (SFF 8087) connectivity
|
| |
|
| Buttons |
- Power On/Off button
- System Reset Button
|
| LEDs |
- 2 Network Activity LEDs
- Fan Fail/System Over Heat LED
- HDD activity LED
- Power Status LED
- Unit Identification (UID) LED
|
|
|
|
| Fans |
- 3 x 8cm high-performance PWM fan(s)
- Optional 5 x 6cm fan cooling module for 826B/216B
|
| |
|
| Operating Temperature Range |
|
| Non-Operating Temperature Range |
- -40°C - 70°C (-40°F - 158°F)
|
| Operating Relative Humidity Range |
- 8% - 90% (non-condensing)
|
| Non-Operating Relative Humidity Range |
- 5% - 95% (non-condensing)
|
| |
| 1U 1280W Redundant Platinum 95%+ Super Quiet Power Supply with PMbus |
| Power Efficiency |
|
| Total Output Power and Input |
- 1000W with Input 100 - 140Vac
- 1280W with Input 180 - 240Vac
|
| AC Input Frequency |
|
| Dimensions (L x W x H) |
|
| Output Type |
|
| +12V |
- Max: 83A / Min: 0.5A (100Vac - 140Vac)
- Max: 106.7A / Min: 0.5A (180Vac - 240Vac)
|
| +5Vsb |
|
| Power Distributor |
- PDB-PT826-S8824
- O/P: 12V/135A
- +5V Max: 40A
- +3.3V Max: 24A
- -12V Max: 0.6A
|
| Certification |
 Platinum Certified
|
| |
|
| Power Supply Safety / EMC |
- BSMI
- CCC
- CE/EMC
- FCC class B
- TUV/CB
- UL/CUL
|
|
|
|
|
 |
|
|
|
|
| |
Part Number |
Qty |
Description |
| Air Shroud |
MCP-310-29001-0N |
1 |
SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13 |
| Cable(S) |
CBL-0071L |
1 |
CBL,FRONT CNTL,16 TO 16 PIN,RA,RND TUBE,75CM,28AWG |
| Cable(S) |
CBL-0160L |
2 |
NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
| Cable(S) |
CBL-0182L |
1 |
4 pin to 4 pin power extension .HDD to RA,40cm. 20AWG |
| Cable(S) |
CBL-0217L |
1 |
CBL,CNTL PANEL CONVERTER,FOR SC826/846,FFC,16PIN,22CM |
| Fan(s) |
FAN-0126L4 |
3 |
80x80x38 mm 7K RPM Chassis Middle Fan w/ Housing |
| Front Panel |
FPB-FP826-D |
1 |
Front control board Dual color LED(FP826-D)forSC826,213,216,219 |
| Front Panel |
TB826 |
1 |
Front panel adaptor board (TB826) forSC826,213,216,219 |
| Drive Tray(s) |
MCP-290-82607-0N |
1 |
826B/216B rear dummy cover for 2 X 2.5" HDD cage |
| Drive Tray(s) |
MCP-220-00075-0B |
12 |
Black gen 5.5 hot-swap 3.5"; HDD tray |
| Power Distributor |
PDB-PT826-S8824 |
1 |
PDB with shorter 24pin and 8pin cables for SC826B |
| Power Supply & Accessory |
PWS-1K28P-SQ |
2 |
1U 1280W, redundant single output power supply |
| Mounting Rail(s) |
MCP-290-00053-0N |
1 |
Rail set, quick/quick, default for 2,3U 17.2";W |
| Mounting Rail(s) |
MCP-410-00007-0N |
1 |
Rail screw bag |
| Rear Window |
MCP-240-82609-0N |
1 |
SC826B, 216B WIO rear window |
|
|
